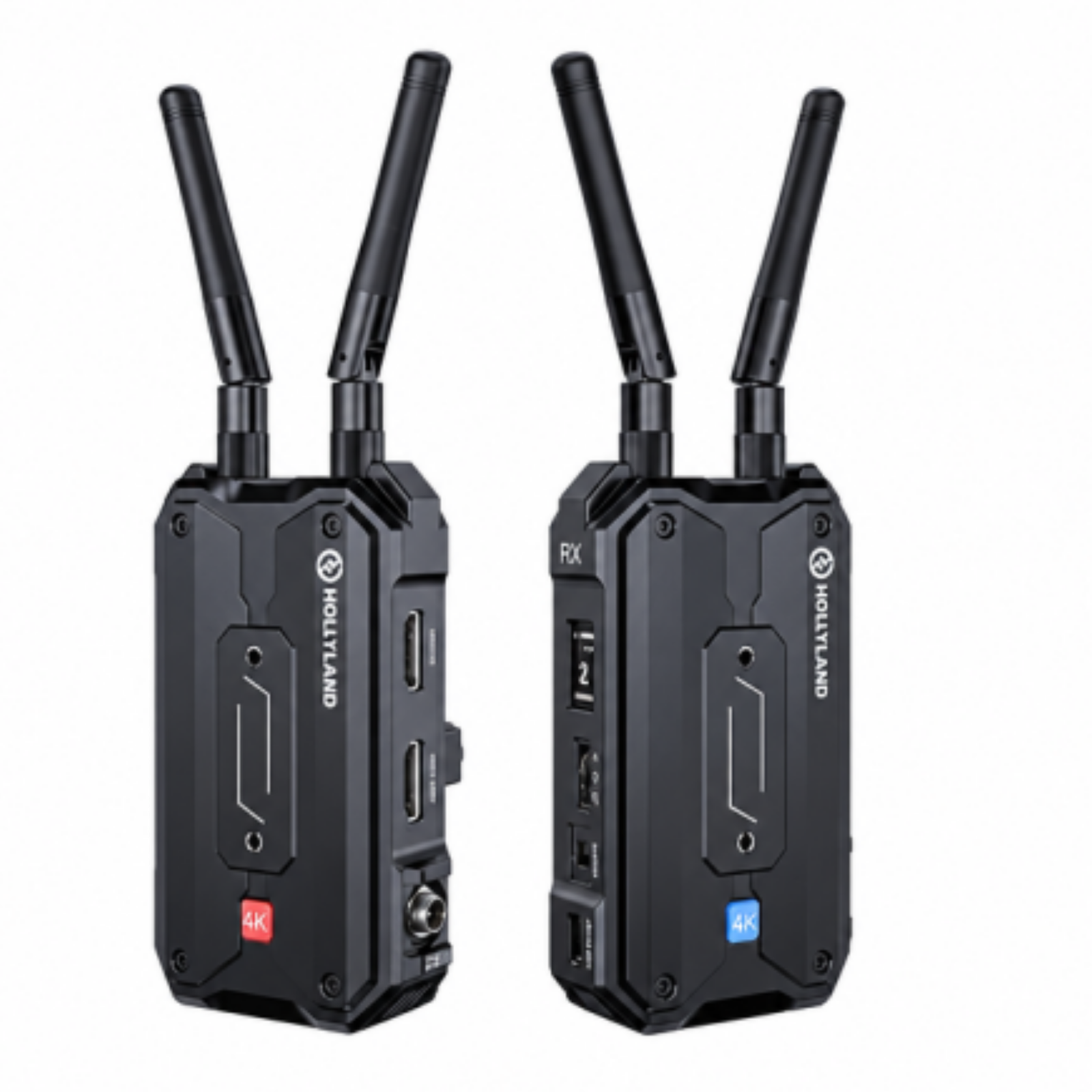

Hollyland Pyro H Transmitter
The Hollyland Pyro H Transmitter is a professional wireless HDMI video transmitter supporting 4K/30fps transmission, dual 2.4GHz/5GHz bands, up to 400m range, HDMI loopout and connection to up to four receivers for multi-person monitoring.
- 4K/30fps Wireless Video Transmission
- HDMI Input
- HDMI Loopout
- 2.4GHz + 5GHz Dual-Band
- Up to 400m / 1,300ft LOS Transmission Range
- Up to 4 Receivers in Broadcast Mode
- Approx. 60ms Low Latency
- UVC Streaming
- Smart Channel Scan
- Auto Frequency Selection
- USB-C Power Support
- NP-F Battery Support
- DC Power Support
- Approx. 192g Weight
- 4K/30fps Wireless Video Transmission
- HDMI Input
- HDMI Loopout
- 2.4GHz + 5GHz Dual-Band
- Up to 400m / 1,300ft LOS Transmission Range
- Up to 4 Receivers in Broadcast Mode
- Approx. 60ms Low Latency
- UVC Streaming
- Smart Channel Scan
- Auto Frequency Selection
- USB-C Power Support
- NP-F Battery Support
- DC Power Support
- Approx. 192g Weight
Description
The Hollyland Pyro H Transmitter is a professional wireless video transmitter designed for filmmakers, videographers, live production teams and on-set monitoring. It supports wireless transmission of video signals up to 4K/30fps using dual 2.4GHz and 5GHz frequency bands, with a transmission range of up to 400m in open, interference-free environments.

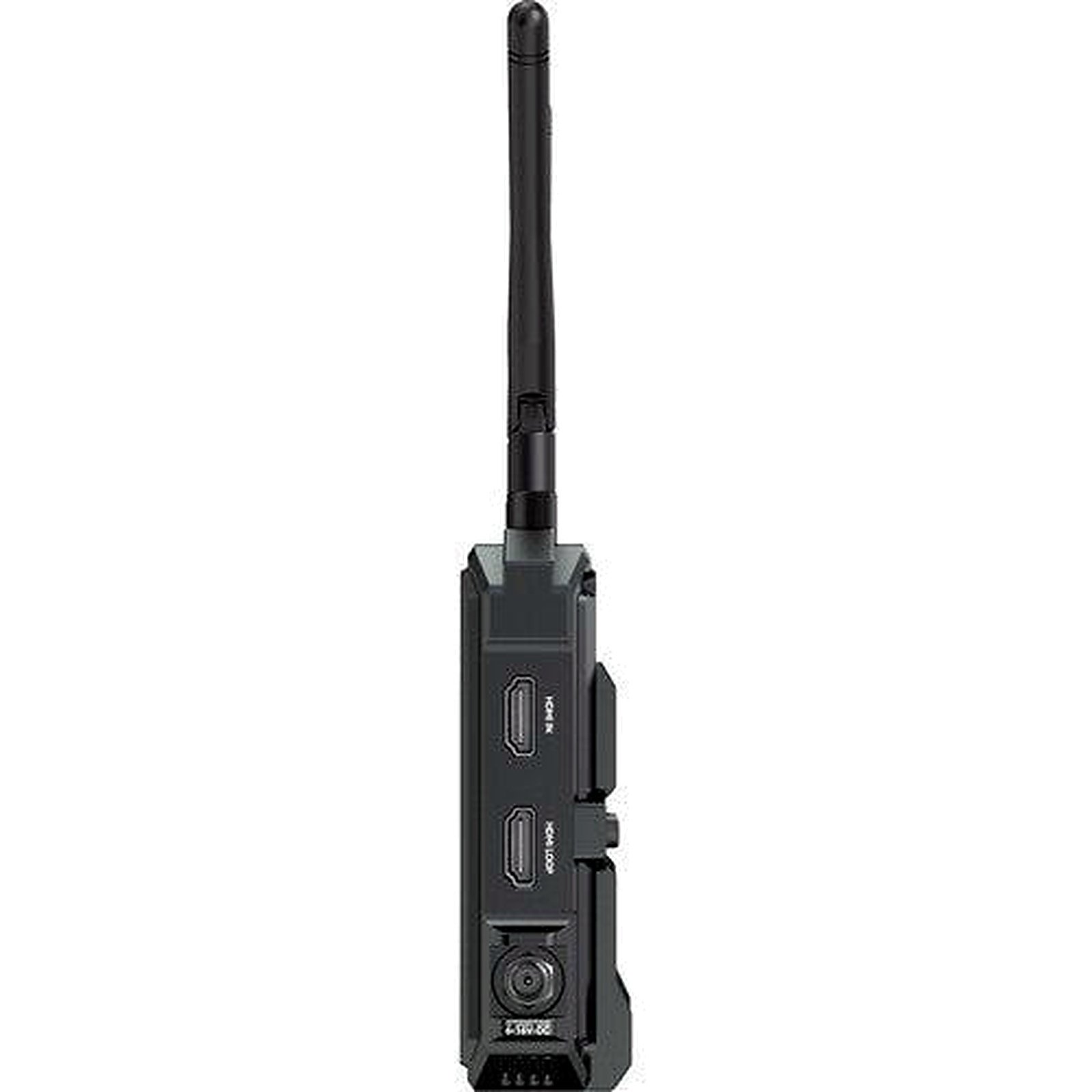

The Pyro H transmitter features HDMI input and HDMI loopout, allowing a camera signal to be transmitted wirelessly while also being sent to a local monitor. It can connect with up to four Pyro H receivers in Broadcast mode, making it suitable for multi-person monitoring and collaborative production.
Key Features
- 4K/30fps wireless video transmission
- 2.4GHz and 5GHz dual-band transmission
- Up to 400m / 1,300ft LOS range
- Up to four receivers in Broadcast mode
- Approx. 60ms latency
- HDMI input
- HDMI loopout
- UVC streaming support
- Smart channel scanning
- Multiple power options
- Supports USB-C, DC and NP-F battery power
Ideal For
Filmmaking, professional videography, live events, studio production, interviews, weddings, commercial production, ENG/EFP applications and multi-monitor on-set workflows.
What’s in the Box
- 1 × Hollyland Pyro H Transmitter
- 2 × Cylindrical Antennas
- 1 × Rotatable Cold Shoe Mount
- 1 × USB-C OTG Adapter
- 1 × Quick Guide
- 1 × Warranty Card
- 1 × Packing List Card
- 1 × Compliance Information
- Product Type: Wireless Video Transmitter
- Model: Hollyland Pyro H TX
- Video Input: HDMI 1.4b
- Video Loopout: HDMI 1.4b
- USB-C: USB 2.0 OTG
- Antenna Connection: SMA Male
- Transmission Resolution: Up to 4K/30fps
- Supported HDMI Input: 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/29.97/30, 1080p50/59.94/60, 4K24/25/30
- HDMI Loopout: Up to 4K30
- Wireless Frequency: 2.4GHz and 5GHz
- 2.4GHz Range: 2.412–2.484GHz
- 5GHz Range: 5.150–5.850GHz
- Maximum Transmission Range: 400m / 1,300ft LOS
- Latency: Approx. 60ms at 1080p60 under laboratory conditions
- Bandwidth: 20MHz; 40MHz in Broadcast mode
- Transmit Power: <23dBm
- Power Consumption: <7W
- USB-C Power: 5V/2A
- Battery Voltage: 6.8–8.4V
- DC Voltage: 6–16V
- Dimensions: 109 × 62.3 × 33.4mm
- Weight: Approx. 192g
- Broadcast Mode: Up to 4 receivers
- Mounting: Compatible with rotatable cold shoe mount
Additional information
| Model | Pyro H |
|---|---|
| Brand | Hollyland |
